AR Coating N-BK7 Optical Magnifier Glass Plano Lens For Consumer Electronics

AR Coating N-BK7 Optical Magnifier Glass Plano Lens For Consumer Electronics

1. Glass Material

   • ‌N-BK Glass‌:
     • ‌Composition‌: Primarily composed of silica, boron oxide, sodium oxide, aluminum oxide, and potassium oxide.
     • ‌Characteristics‌: Known for its high optical transmittance, low dispersion, and good chemical stability.

   Property

   • ‌Anti-Reflection (AR) Coating‌:
     • ‌Function‌: Reduces reflection and increases light transmission through the lens.
     • ‌Benefits‌: Enhances clarity and brightness of images, minimizes glare, and reduces eye strain.
     • ‌Technology‌: Utilizes thin-film interference principles to achieve optimal light transmission.

   Function

   • ‌Optical Magnifier‌:
     • ‌Purpose‌: Provides magnified views of objects, enabling detailed inspection and observation.
     • ‌Magnification‌: Varies based on lens design and application, but typically enhances visual detail.
     • ‌Design‌: Incorporates optical principles to focus light and create a clear, magnified image.

   Lens Type

   • ‌Plano Lens‌:
     • ‌Description‌: Features one flat surface and one curved surface, making it a simple but effective lens type.
     • ‌Use in Magnifiers‌: Ideal for creating magnified views with minimal distortion.
     • ‌Manufacturing‌: Easier to produce and less expensive compared to more complex lens designs.

   Application

   • ‌Scientific and Industrial Use‌:
     • ‌Microscopes‌: Enhances the clarity and detail of microscopic objects.
     • ‌Inspection Tools‌: Used in electronics, aerospace, and automotive industries for detailed inspections.
     • ‌Medical Fields‌: Aids in viewing and diagnosing medical conditions.
   • ‌Hobbies and Crafts‌:
     • ‌Jewelry Making‌: Allows for detailed inspection and finishing of jewelry pieces.
     • ‌Model Building‌: Enhances the ability to see and work with small details in models.
     • ‌Art and Calligraphy‌: Provides a clearer view of fine details in artwork and writing.

     • Precision Metrology: Calibration tools, interferometers, and laser alignment systems.

     • Biomedical Imaging: Endoscopes, ophthalmic devices, and fluorescence microscopy.

     • Telecommunications: Fiber-optic collimators, laser diode modules, and optical amplifiers.

     • Semiconductor Inspection: Lithography masks, wafer analyzers, and alignment stages.

     • Defense & Aerospace: Targeting systems, rangefinders, and Heads-Up Displays (HUDs).

     • Consumer Electronics: Augmented Reality (AR) glasses, camera lenses, and barcode scanners.

AR Coating N-BK7 Optical Magnifier Glass

AR Coating N-BK7 Optical Glass Plano Lens

Plano Lens in Optical Magnifiers

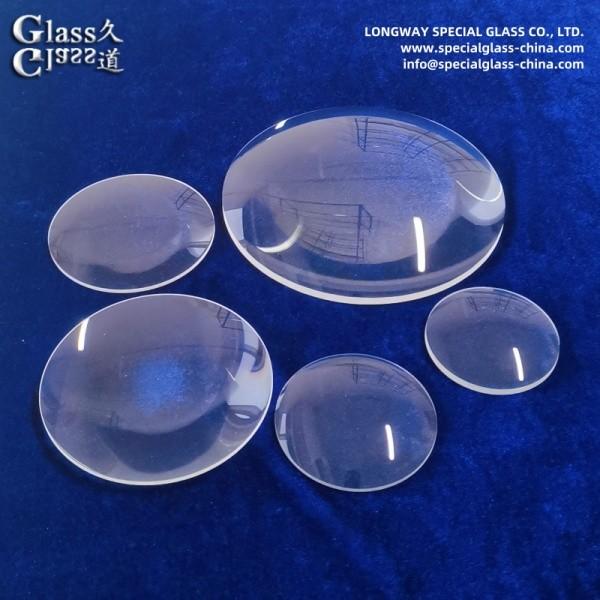

AR Coating N-BK7 Optical Magnifier Glass Plano Lens For Consumer Electronics Images
